VA Industrieanlagenbau Linz Coil Coating Line

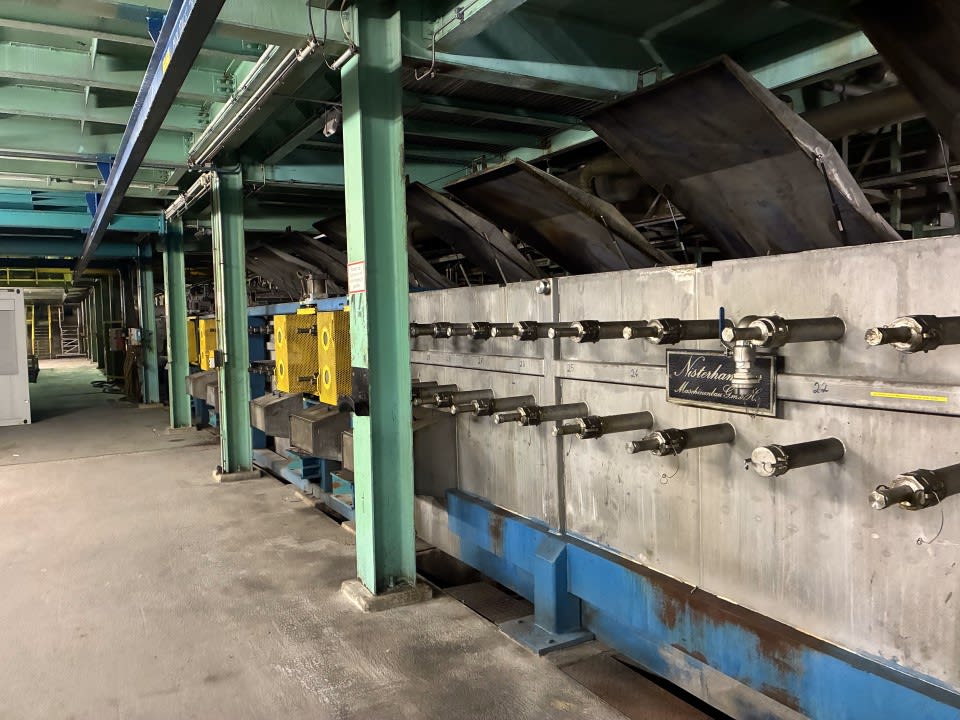

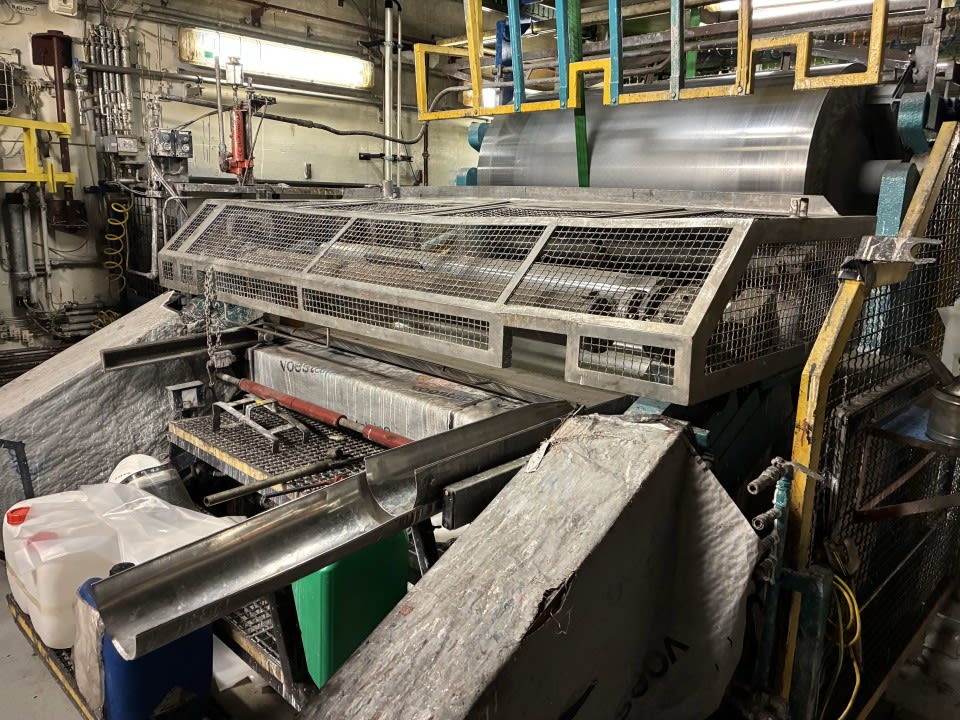

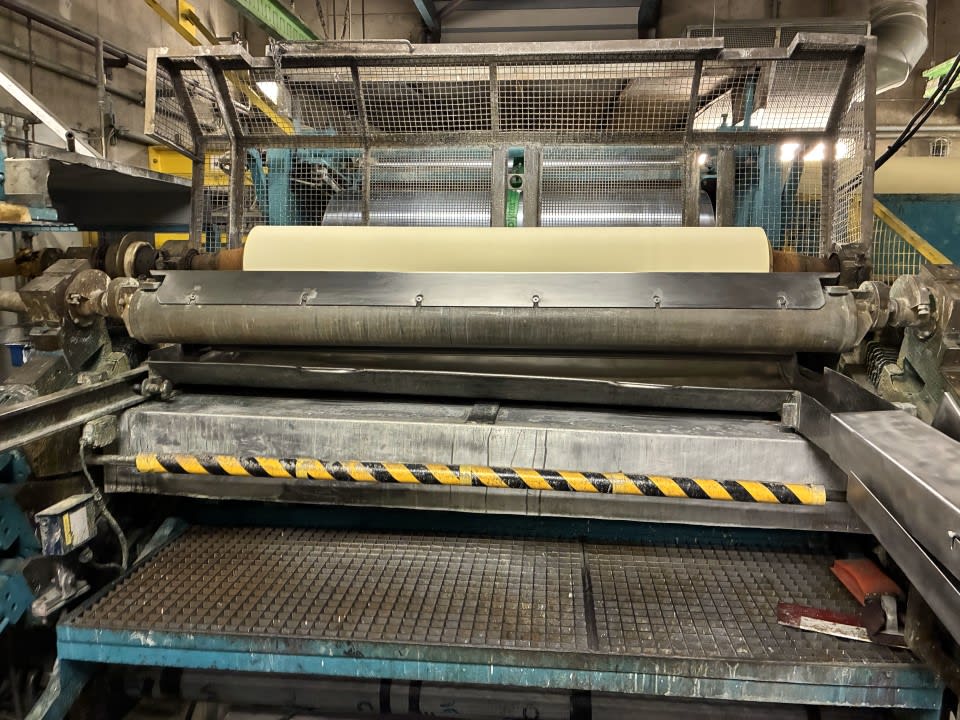

Commissioned in July 1989. Since November 2014, no strip coating has been carried out. The plant was converted into a repair facility. This means that both furnaces, the RNV, the water coolers, the inline measuring systems, and the film laminating unit were shut down. From this date onward, the plant was operated in a “cold” condition. The plant was finally shut down in May 2025. Please see attachments for further information. Annual capacity appr. 250,000 t. Line speed: Entry section 150 m/min, Treatment section 120 m/min, Exit section 180 m/min. Strip dimensions: Width 600 – 1,600 mm, Thickness 0.4 – 1.50 mm (width of up to 1,600 mm) 1.51 – 2.00 mm (width upon request). Pre-treatment: Degreasing and chromate-free pre-treatment. Coaters:A maximum of 4 coatings is applied to the strip (2 layers on top side, 2 layers on bottom side). Curing ovens: For curing of the previously applied coating. Length of oven 40 m, non-contact length 60 m, oven temperature 300 – 500 °C. Film lamination and cooling stations: Application of the protective foil (120 μm) and cooling of the strip.
